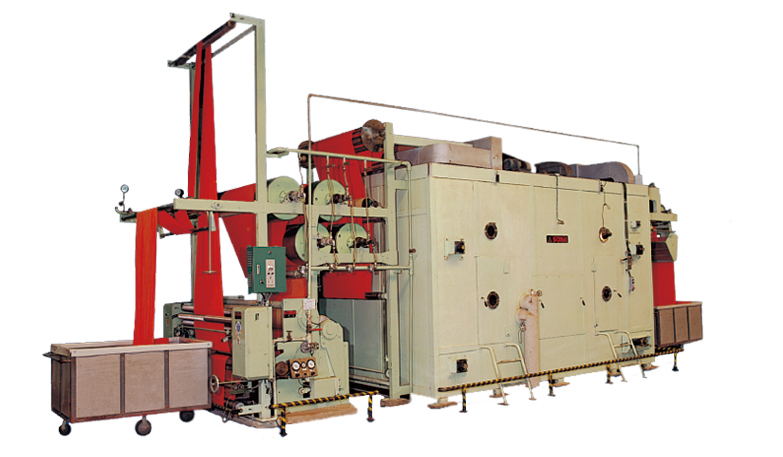

LOOP DRY MACHINE SIHL 60 LOOP DRY M/C improved innovatory the performance of qulitity of fabric |
|
|
|
|
|
 |
|
|
ㆍThe relaxing effect
- The loop dry machine(SIHL 60) is available in finishing process of fab-rics tensionless dry and high quality relaxing effect
with anti-shrinkage because of the fabric is become slowly dry and transported special conveyor bar
ㆍThe rise in touch
- Be expecially fine to peach skin fab-ric and after continuous weight re-duct processing fabric. SIHL-60 is can be adjusting
low temperature and low speed circulation to hot air. then fabrics are sufficient floating and become slowly dry between bar
and bar for the good touch effect. |
|
|
|
 |
|
|
|
 |
|
|
|
| 형식 |
|
Model |
|
Unit |
|
SIHL 60 |
|
| 체 류 량 |
|
loading length |
|
(m) |
|
60 |
|
| 최대작업속도 |
|
max. cloth speed |
|
(m/min) |
|
100 |
|
| 최고사용온도 |
|
max.operating temperature |
|
(℃) |
|
180 |
|
| 최대소모열량 |
|
heating capacity |
|
(kcal/hr) |
|
300,000 |
|
| 전 력 |
|
electric power |
|
(kw) |
|
37 |
|
| 온도제어방법 |
|
temperature control |
|
|
|
pid or on-off control |
|
| 기 계 크 기 |
|
max.operating temperature |
|
(m/m) |
|
3,500 |
|
|
|
|
