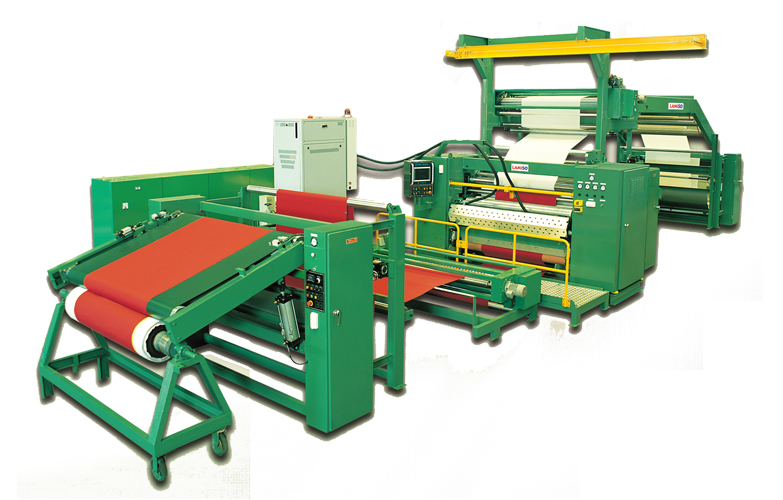

¤ıThe Hot melt is adhesive that make from non-volatility, incombustibility, thermoplastic resin which is 100% solid materials in the ambient temperature and it is not require any solvent. Samill's Hot melt coating and Laminating machine which LAMISO is use hotmelt and innovative and environment friendly machine that materials attach each other fiber, vinyl, mesh etc. with safety by high-speed and make various textile, vinyl etc. of high-function and high-value added.
¤ıLAMISO process is when after upper fabric feed in from front side of machine Hot melt which supplied through DRUM MELTERS are sprayed on the gravure roller in the time the hot melt are remaining into the lot of the small hole on the gravure roller it is make dot state on the back side of upper fabric by heater and same time it meet with under fabric which precise speed controlled by controller with transfer by conveyor belt form rear of machine it is precise adhesion or lamianting can be available.
¤ıLAMISO products are used to into wide expenditure such as clothing, industry, necessities of life and it can be applied in various materials such as textile, films, paper, card board, foamed materials, thick foils.
¤ıThere is no risk of pollution and fire in LAMISO. And working at high speed is possible.
¤ıLAMISO is very adhesive and the laminated product realizes soft touch. |
|
|
|
|
|
|
|
|
|
|
|
|

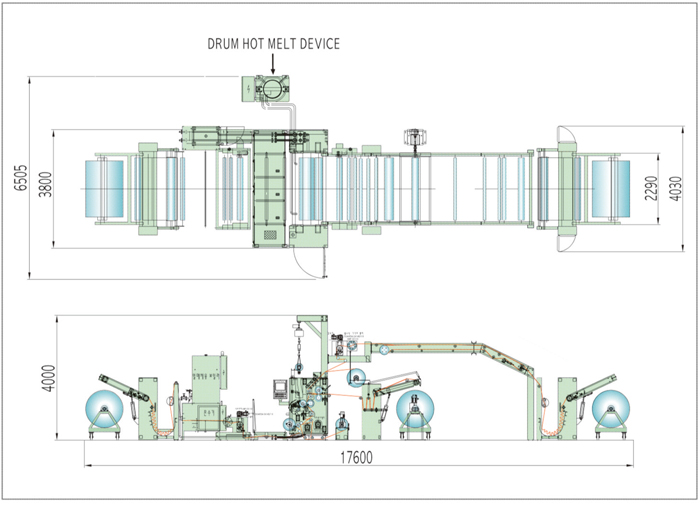

¤ıDRUM MELTERS |
|
¤ıUNDER FABRIC FEED IN DEVICE |
|
¤ıCONTROL BOX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
¤ıUPPER FABRIC FEED IN DEVICE |
|
¤ıCENTERING DEVICE |
|
¤ıWINDING DEVICE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
